Please Read Carefully
Emergency Shutdown Procedure
If an emergency occurs, carry out the following isolation steps immediately if it is completely safe to do so[
Step 1

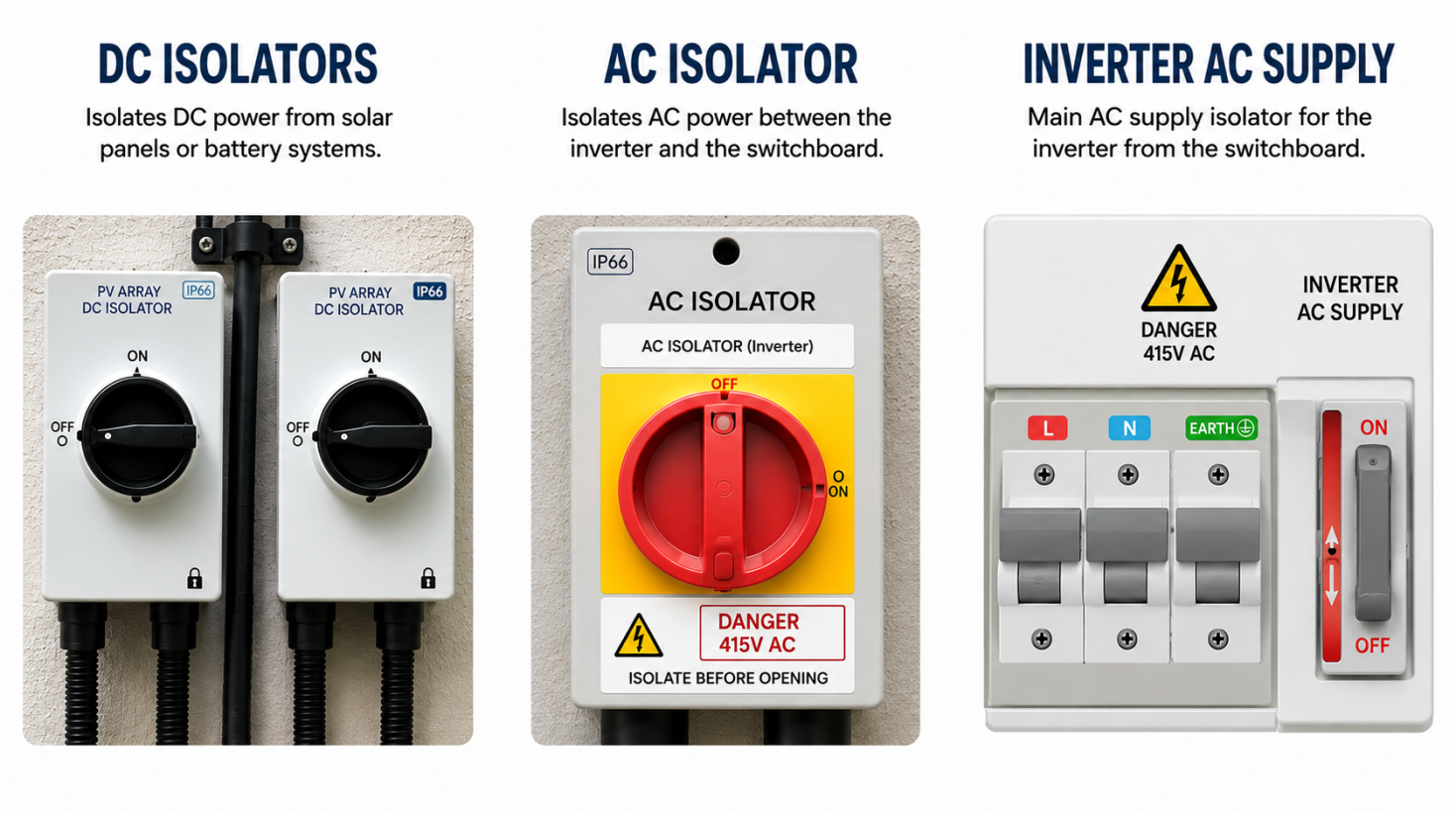

Switch Both DC isolators located to the side of the inverter to the "OFF" position.
Step 2
Switch the DC isolators on the right-hand side of the inverter to the "OFF" position.
Step 3
Switch the AC isolator located to the side of the inverter to the "OFF" position.
Storage
Switch off the inverter AC supply (Down) at your consumer unit, labelled "Inverter AC supply."
System Start-Up Procedure
Step 1
Switch both DC Isolators located above the inverter to the "ON" position.
Step 2
Switch the DC isolators on the right-hand side of the inverter to the "ON" position.
Step 3
Switch the AC isolator located above the inverter to the "ON" position.
Step 4
Switch on the inverter AC supply (UP) at your consumer unit, labelled "Inverter AC supply.
The Inverter may take up to 5 minutes to respond and return online.
In the event of a system failure please contact Erribul Electrical & Renewable Services Ltd
HIGH VOLTAGE WARNING
Solar arrays emit active high-voltage DC electricity during daylight hours.
Do not touch exposed or loose wires, and never touch panels with cracked or broken glass due to severe shock risks
Burn Hazard Notice
The external metal elements on the back profile of the active inverter housing can spike to **75°C** during operation
Avoid coming into physical contact with these surfaces to prevent skin burns
